White Masterbatch is one of the most essential materials in the plastics industry. It provides brightness, opacity, and enhanced mechanical properties for final products, ensuring both aesthetic and functional performance. From film blowing and injection molding to extrusion and thermoforming, the quality of white masterbatch has a direct impact on product consistency and efficiency.  However, when the masterbatch formulation, pigment dispersion, or processing parameters are not optimized, several defects may occur — affecting surface finish, whiteness, and long-term stability. Understanding these problems and their causes allows manufacturers to implement effective corrective actions, maintaining both product quality and production stability.  Below is an in-depth analysis of the most common defects in White Masterbatch and practical ways to resolve them.

1. Uneven Whiteness or Streaking

This defect frequently appears in film blowing, extrusion, and injection molding applications. It leads to visible color inconsistency, streaks, or cloudy surfaces.  Main causes include:
  • Poor dispersion of TiO₂ pigments within the polymer matrix
  • Agglomeration of TiO₂ particles
  • Inadequate melt temperature
  • Improper screw speed or back pressure
Recommended solutions:
  • Select high-dispersion White Masterbatch produced with twin-screw compounding technology
  • Increase melt temperature to improve pigment distribution
  • Adjust screw speed and back pressure for better mixing
  • Use Rutile TiO₂, which offers stronger opacity and more stable whiteness than Anatase

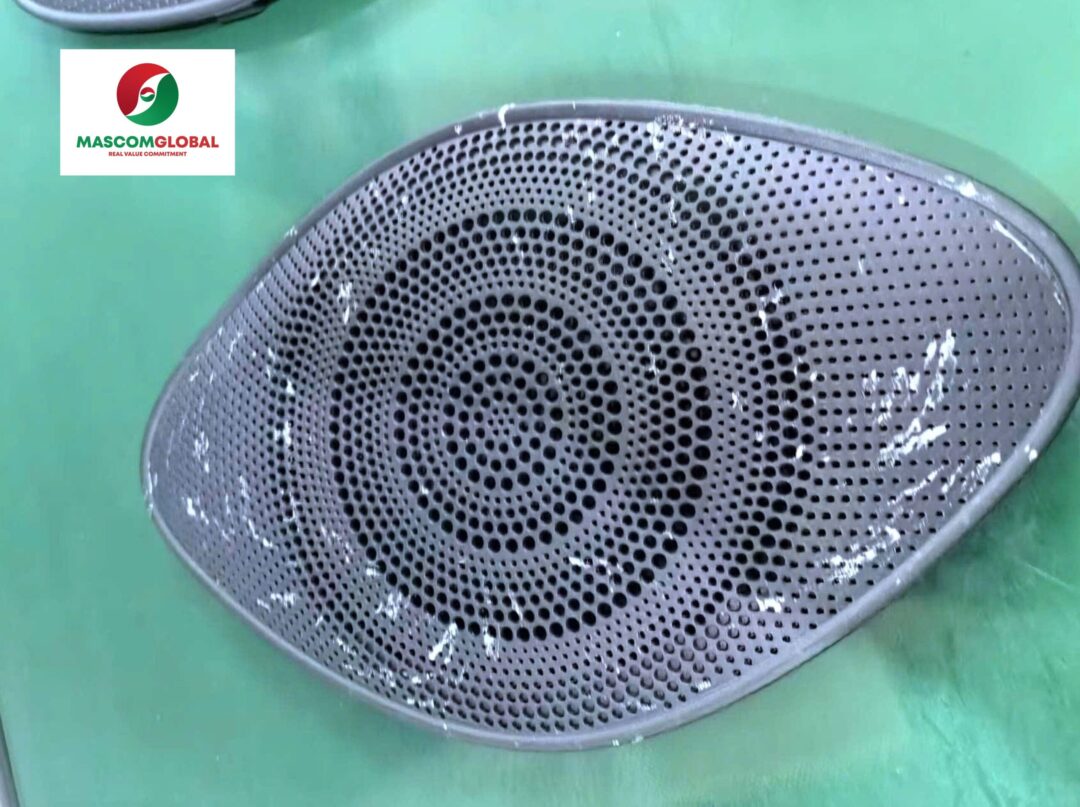

Common Defects in White Masterbatch

2. Low Whiteness or Dull, Greyish Appearance

When the final product lacks brightness or appears slightly yellowish, it usually indicates issues related to pigment loading or raw material quality.  Causes:
  • Insufficient TiO₂ content
  • Use of Anatase TiO₂ that tends to discolor under heat or UV
  • Poor-quality or oxidized base resin
Solutions:
  • Choose a masterbatch containing 50–75% TiO₂, depending on the application
  • Prefer organic-coated Rutile TiO₂ for better heat and UV resistance
  • Store materials in a dry, cool environment to prevent degradation
  • For high-end applications, verify Lab color values* to ensure consistent whiteness

3. Spots, Undispersed Particles, or Fish Eyes

These small defects are highly visible in thin films or glossy molded parts, negatively affecting product aesthetics.  Causes:
  • Pigment agglomeration due to poor premixing
  • Low melt temperature resulting in incomplete dispersion
  • Moisture or contamination in the raw materials
Solutions:
  • Use twin-screw extruded masterbatch for uniform pigment distribution
  • Increase melt temperature or adjust screw speed to allow more mixing time
  • Ensure proper drying of raw materials before processing

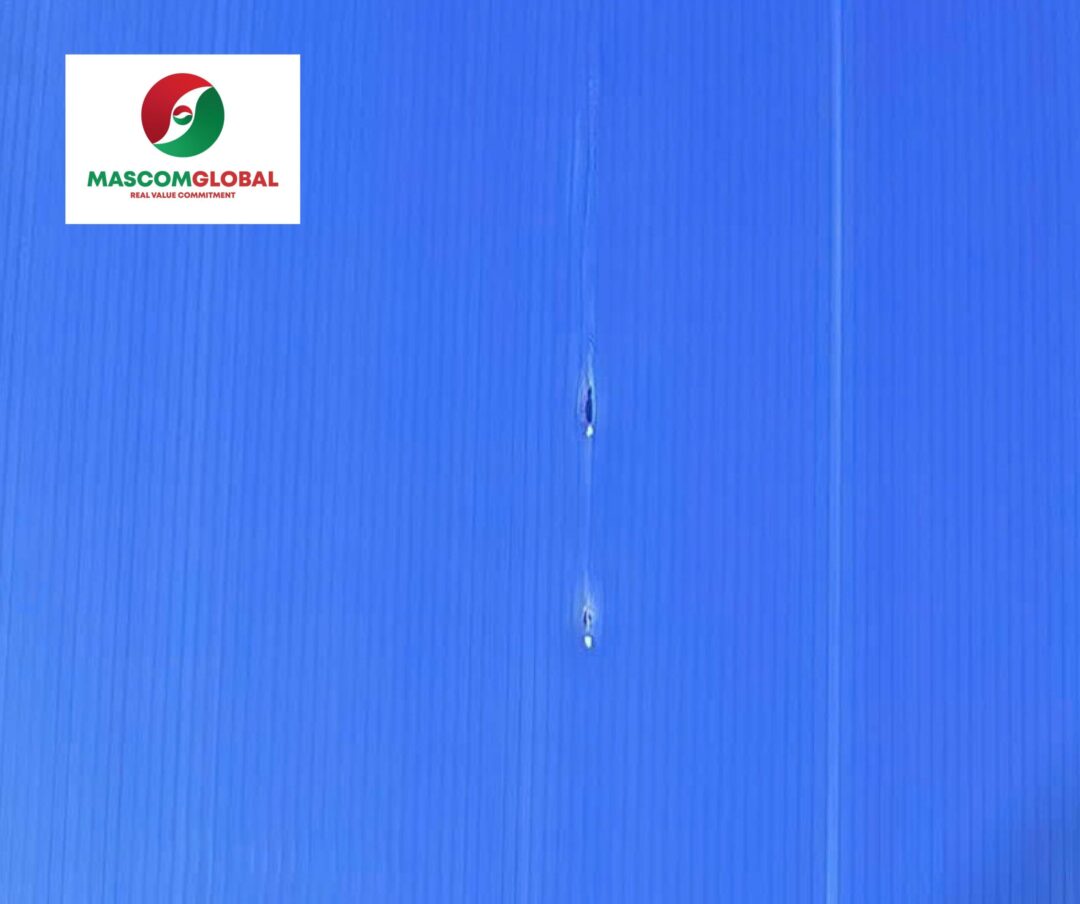

Common Defects in White Masterbatch

4. Yellowing or Discoloration Over Time

This defect is often observed in products exposed to sunlight, heat, or harsh environments.  Causes:
  • Use of Anatase TiO₂, which is UV-sensitive
  • Overheating during processing
  • Incompatibility among additives or resins
Solutions:
  • Select Rutile TiO₂ with organic coating for superior UV resistance
  • Optimize machine temperature profiles to prevent polymer degradation
  • Ensure formulation compatibility among all additives and base resins

5. Poor Opacity or Insufficient Coverage

A translucent or uneven white appearance indicates a lack of opacity, which is critical for packaging and film products.  Causes:
  • Low masterbatch dosage
  • Inadequate TiO₂ concentration
  • Oversized pigment particles reducing light scattering efficiency
Solutions:
  • Increase masterbatch dosage to 2 – 8% depending on thickness and resin type
  • Use TiO₂ with particle size around 0.2 – 0.3 µm for optimal opacity
  • Check whiteness index and coverage before mass production

6. Poor Surface Gloss or Rough Texture

Surface smoothness and gloss are key for cosmetic, consumer, and household products.  Causes:
  • Poor pigment dispersion
  • Excessive masterbatch dosage
  • Incorrect extrusion temperature or screw configuration
Solutions:
  • Reduce masterbatch ratio or switch to a high-dispersion grade
  • Adjust processing parameters to optimize flow and surface finish
  • Use formulations containing surface-enhancing additives to improve gloss

Recommendations for Selecting High-Quality White Masterbatch

To minimize the above issues and maintain consistent product quality, manufacturers should:
  • Use high TiO₂ concentration (preferably Rutile grade)
  • Ensure excellent pigment dispersion through twin-screw compounding
  • Verify whiteness index, opacity, and consistency across batches
  • Work with suppliers offering technical support and strict quality control
